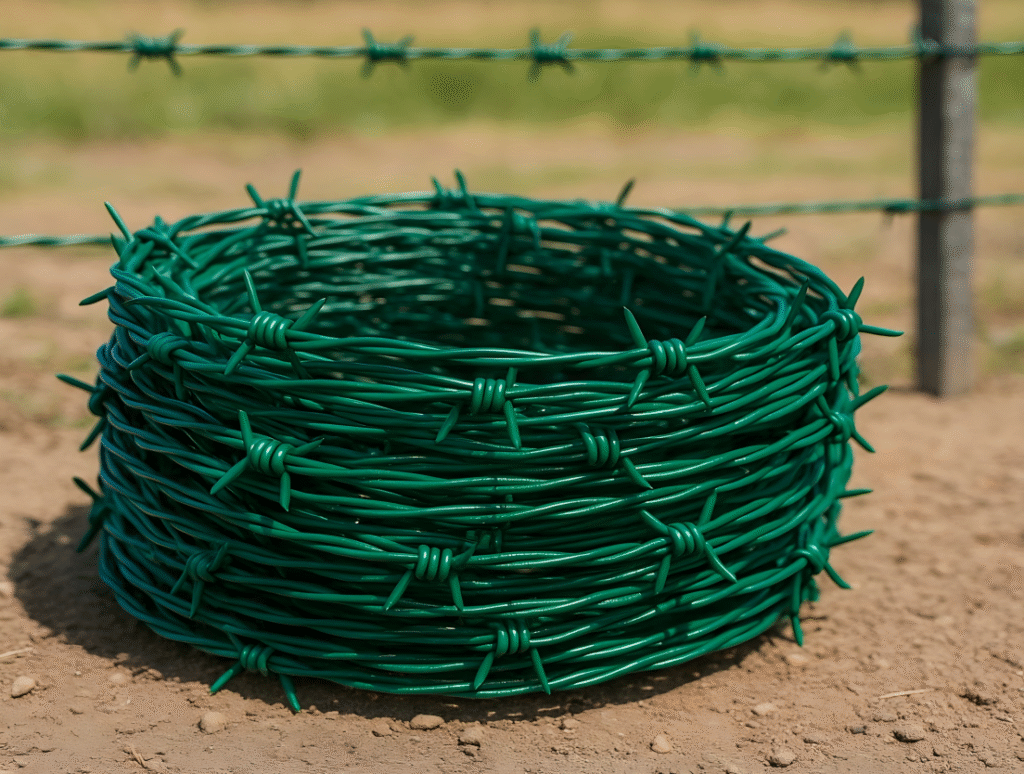

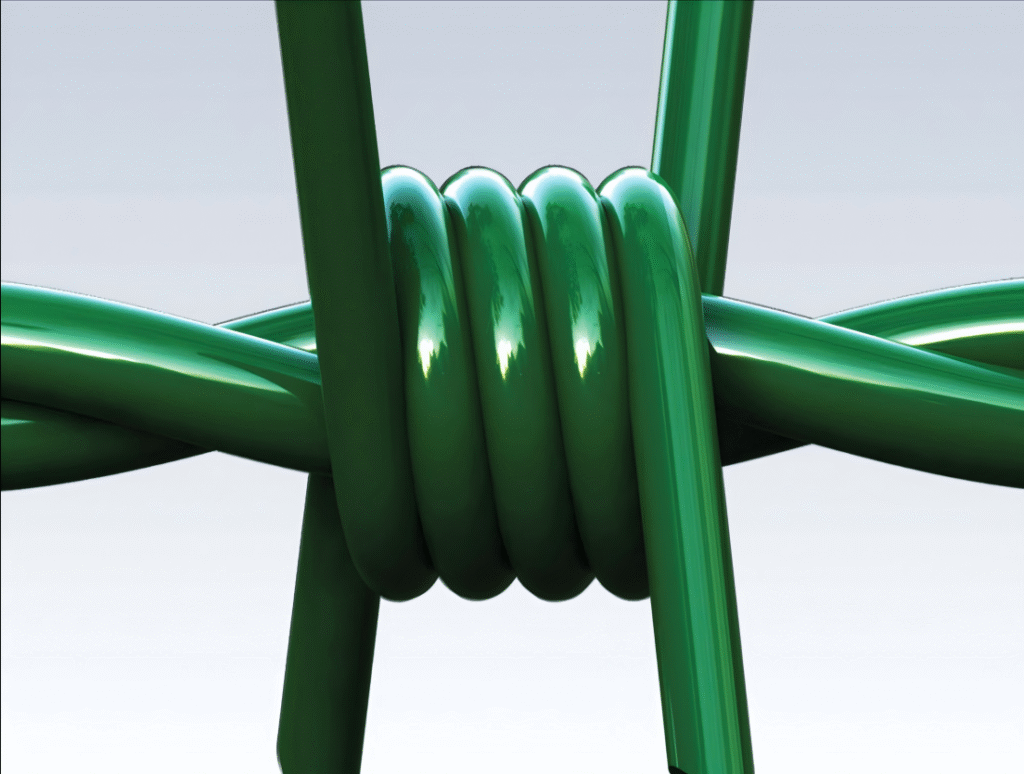

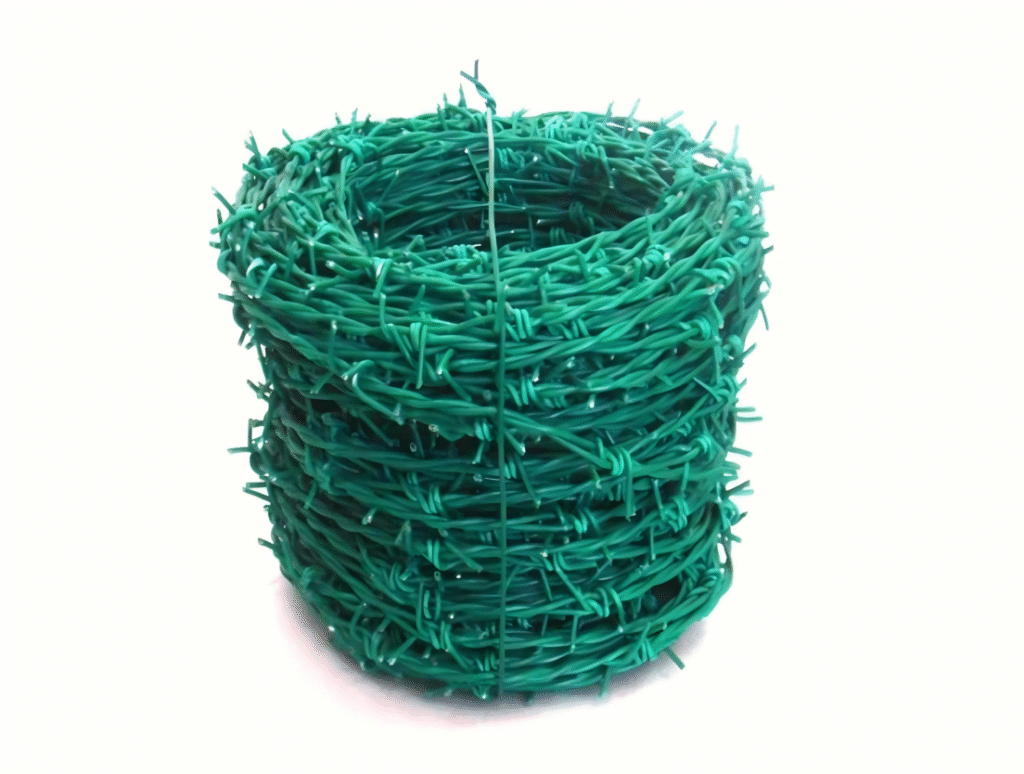

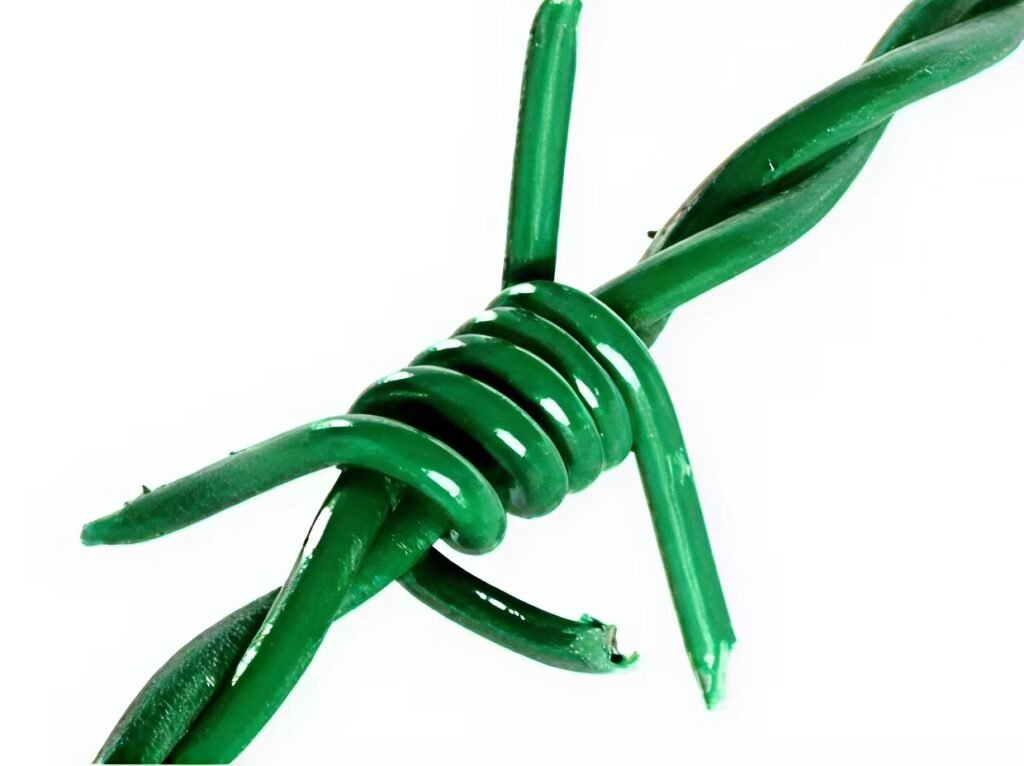

PVC Coated Barbed Wire

A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Characteristic: because of the high strength and higher toughness, PVC can reduce the wear between layer and layer, rope and spool during operating. With the excellent corrosion resistance, PVC wire rope is good for ocean engineering, irrigation machines and big excavators.
General Use: PVC coated barbed wire is a kind of modern security fencing materials fabricated with high-tensile wire. PVC Coated Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

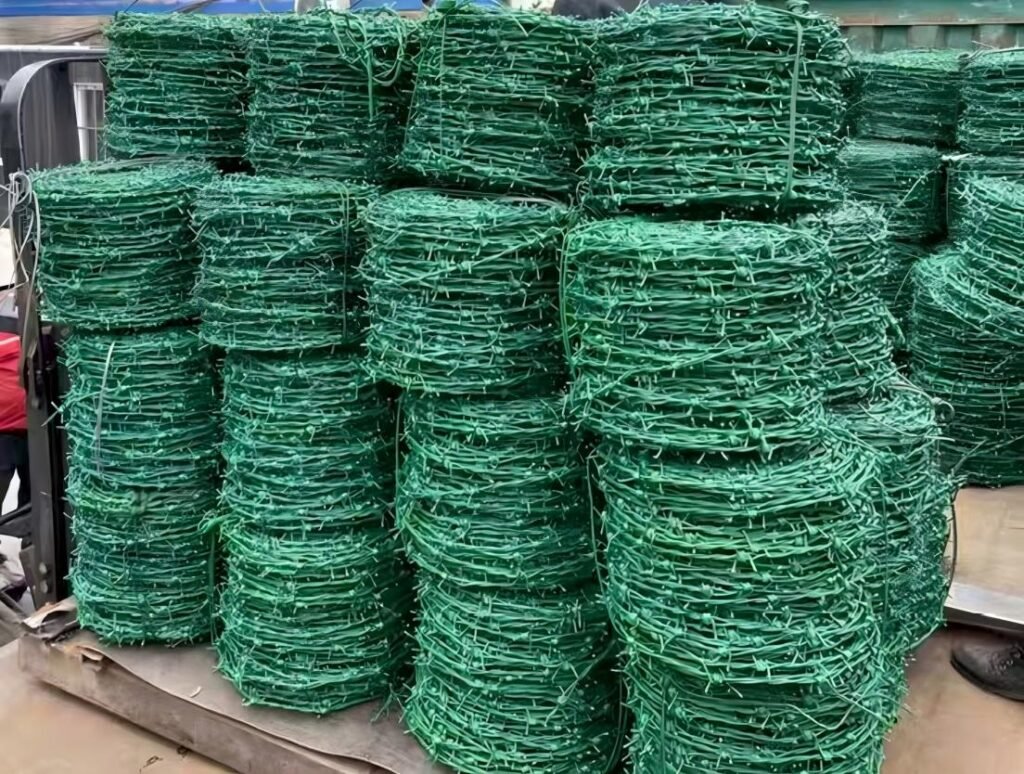

Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or Hessian cloth.

Gauge of
Strand and Barb in B.W.G.
Approximate Length per Kilo in Meter
Barbs Spacing 3″Barbs Spacing 4″Barbs Spacing 5″Barbs Spacing 6″
12 × 126.06176.75907.27007.6376
12 × 147.33357.90518.30158.5741
12-1/2 × 12-1/26.92237.71908.30228.7221
12-1/2 × 148.10968.8149.22429.5620
13 × 137.98088.8999.572110.0553
13 × 148.84489.689910.292310.7146
13-1/2 × 149.607910.613411.470511.8553
14 × 1410.456911.659012.542313.1752
14-1/2 × 14-1/211.987513.367114.378115.1034
15 × 1513.892715.494216.666617.5070
15-1/2 × 15-1/215.349117.114418.406019.3386
